Product Catalog 2026

IFPD

LTF Series RK3588 3.0 Interactive Flat Panel

65" / 75" / 86" / 98" / 110"

Flagship RK3588 IFPD up to 110" with 4K 120Hz, 40-point IR touch and Android 15, built for large classrooms.

Display Size	65" / 75" / 86" / 98" / 110"
Panel Type	Ultra HD Direct-type LED
Resolution	3840×2160 @60Hz (110": 120Hz)
Brightness	400 cd/m²
Contrast Ratio	1200:1 (typ.)
Viewing Angle	178°
Touch Technology	IR touch, up to 40-point multi-touch (Windows)
Touch Response Time	First point <2 ms, continuation <8 ms
Speakers	2×15W front (20W×2 on 110") + 20W subwoofer, ≤60W total
System	Android 15, Rockchip RK3588 (4×A76 + 4×A55 up to 2.4GHz), Mali-G610 MC4, 6 TOPS NPU

📄 Spec sheet (.pdf)📄 Spec sheet (.xls)

IFPD

RP Series RK3588-BA Interactive Flat Panel (LTF)

65" / 75" / 86"

65"–86" RK3588 IFPD with 4K IR touch, Android 15, 20W×2 stereo plus subwoofer and 8-microphone array.

Display Size	65" / 75" / 86"
Panel Type	Ultra HD Direct-type LED
Resolution	3840×2160 @60Hz
Brightness	350 cd/m²
Contrast Ratio	1200:1 (typ.)
Viewing Angle	178°
Touch Technology	IR touch, up to 40-point multi-touch (Windows)
Speakers	2×20W front + 20W subwoofer, ≤60W total
System	Android 15, Rockchip RK3588 (4×A76 + 4×A55 @2.2–2.4GHz), Mali-G610 MC4
RAM / Storage	8–32GB DDR4 / 128–512GB eMMC

📄 Spec sheet (.pdf)📄 Spec sheet (.xls)

IFPD

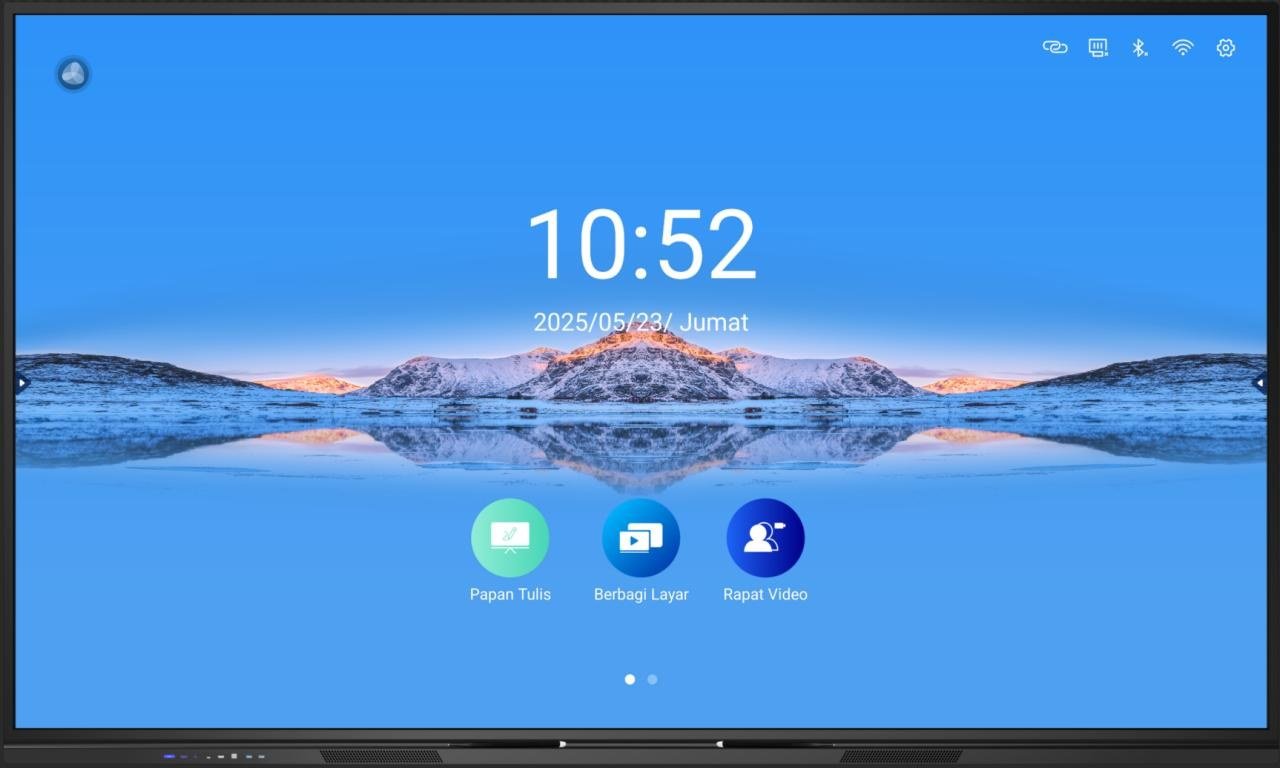

RP Series RK3588-BD Interactive Flat Panel (LTF)

65" / 75" / 86"

65"–86" RK3588 IFPD with three front HDMI inputs, Type-C, 40-point IR touch and Android 15 onboard.

Display Size	65" / 75" / 86"
Panel Type	Ultra HD Direct-type LED
Resolution	3840×2160 @60Hz
Brightness	350 cd/m²
Contrast Ratio	1200:1 (typ.)
Viewing Angle	178°
Touch Technology	IR touch, up to 40-point multi-touch (Windows)
Front Ports	Type-C ×1; HDMI IN ×3; USB 3.0 ×2; USB-B ×1
Speakers	2×20W front + 20W subwoofer, ≤60W total
System	Android 15, Rockchip RK3588 (4×A76 + 4×A55 @2.2–2.4GHz), Mali-G610 MC4

📄 Spec sheet (.pdf)📄 Spec sheet (.xls)

IFPD

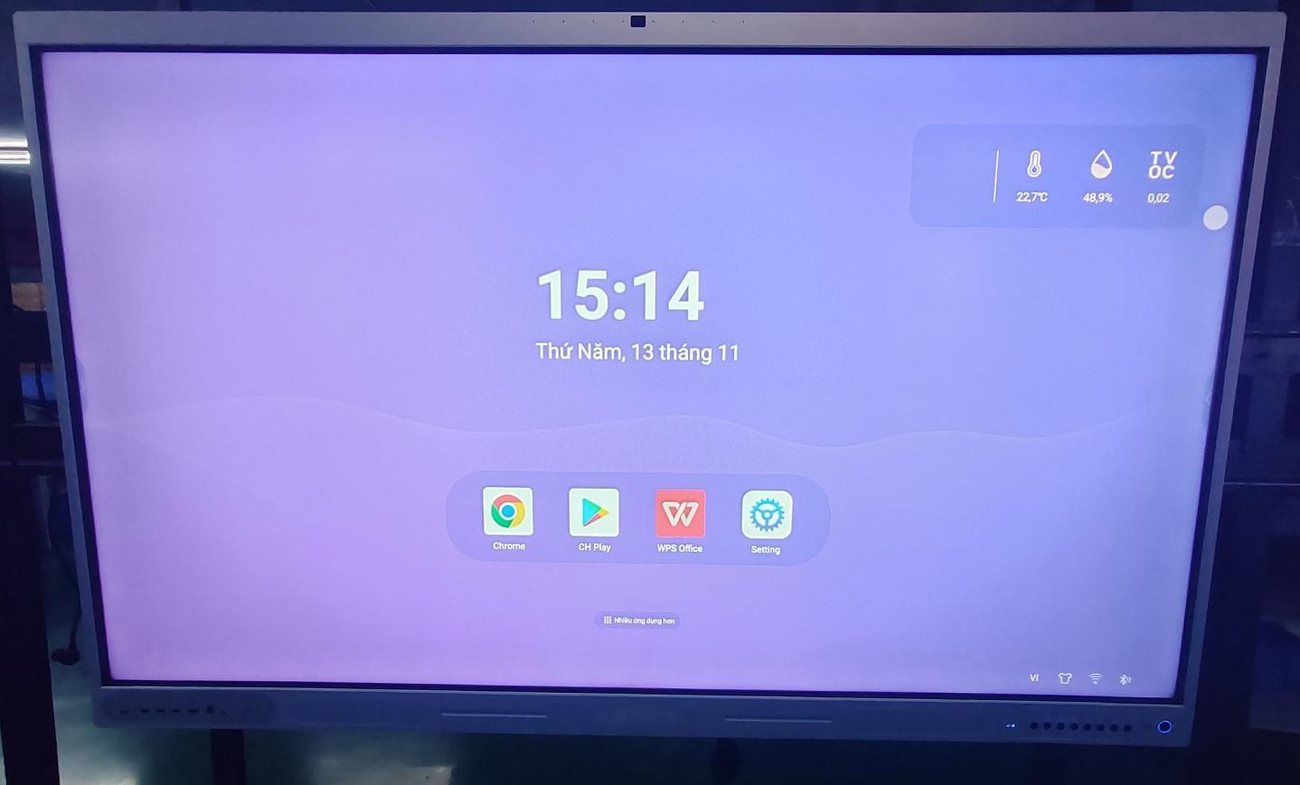

RP Series RK3588-BA Dual-Side IFPD (LTC)

65" / 75" / 86"

Dual-side 65"–86" RK3588 IFPD with 4K IR touch and Android 15, letting two sides of a room work at once.

Display Size	65" / 75" / 86"
Panel Type	Ultra HD Direct-type LED
Resolution	3840×2160 @60Hz
Brightness	350 cd/m²
Contrast Ratio	1200:1 (typ.)
Viewing Angle	178°
Touch Technology	IR touch, up to 40-point multi-touch (Windows)
Touch Precision	1 mm (over 90% area)
Speakers	2×15W front (20W×2 option) + 20W subwoofer, ≤60W total
System	Android 15, Rockchip RK3588 (4×A76 + 4×A55 @2.2–2.4GHz), Mali-G610 MC4

📄 Spec sheet (.pdf)

IFPD

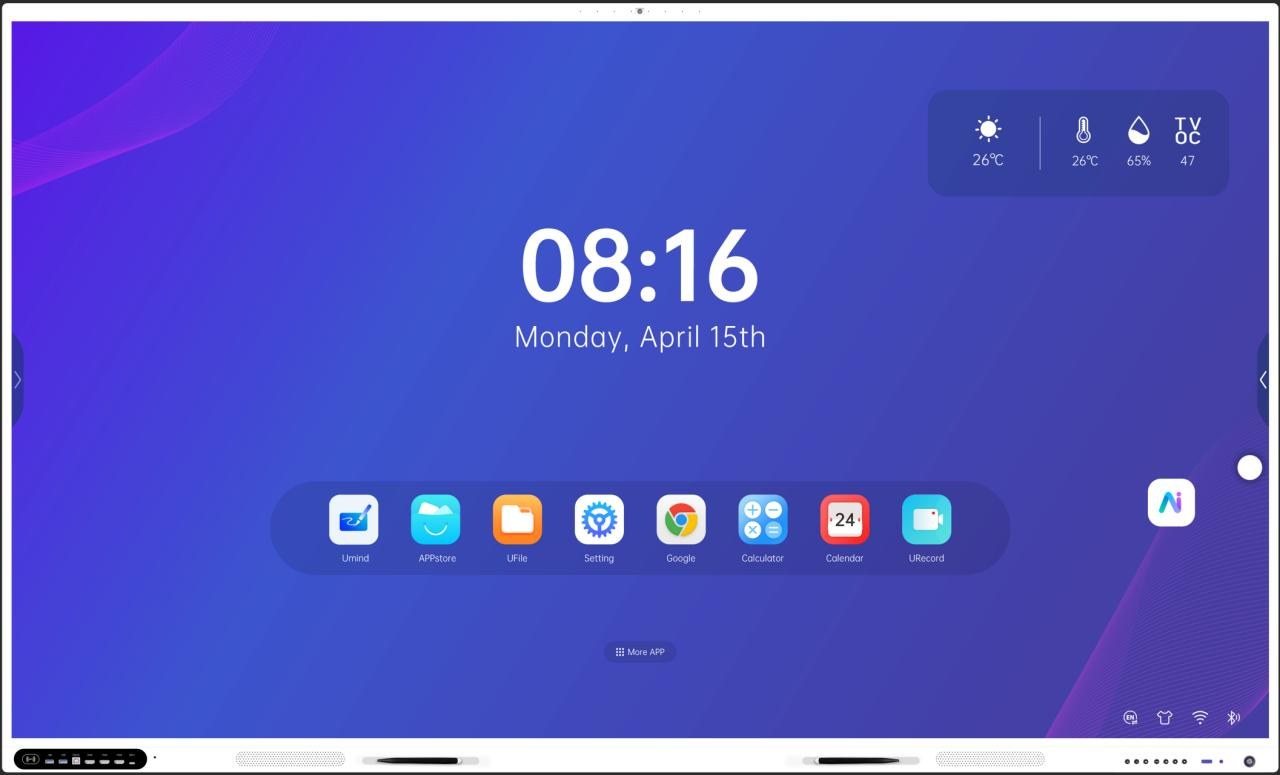

RP Series RK3588-BD Dual-Side IFPD (LTC)

65" - 110"

Dual-side RK3588 IFPD from 65" to 110", 4K 120Hz on 110", 40-point IR touch and Android 15.

Display Size	65" / 75" / 86" / 98" / 110"
Panel Type	Ultra HD Direct-type LED
Resolution	3840×2160 @60Hz (110": 120Hz)
Brightness	350 cd/m²
Contrast Ratio	1200:1 (typ.)
Viewing Angle	178°
Touch Technology	IR touch, up to 40-point multi-touch (Windows)
Front Ports	Type-C ×1; HDMI IN ×3; USB 3.0 ×2; USB-B ×1
Speakers	2×15W front (20W×2 option) + 20W subwoofer, ≤60W total
Power Consumption	Max <290W (65") / <320W (75") / <350W (86") / <510W (98") / <640W (110")

📄 Spec sheet (.pdf)

IFPD

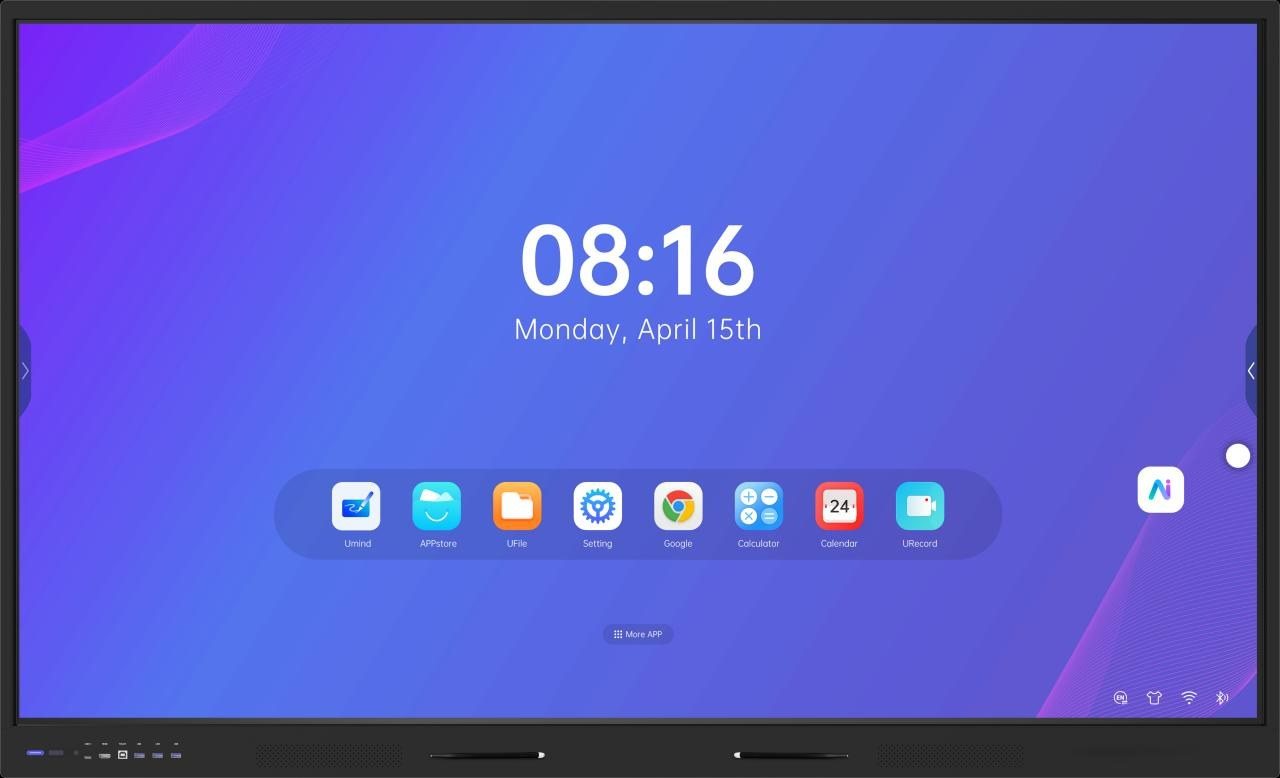

RP Series RK3576-BA Interactive Flat Panel (LT)

65" / 75" / 86"

65"–86" RK3576 IFPD on Android 16 with 4K IR touch, 15W×2 audio and one-touch screen recording.

Display Size	65" / 75" / 86"
Panel Type	Ultra HD Direct-type LED
Resolution	3840×2160 @60Hz
Brightness	350 cd/m²
Contrast Ratio	1200:1 (typ.)
Viewing Angle	178°
Touch Technology	IR touch, up to 40-point multi-touch (Windows)
Speakers	2×15W front (20W×2 option), ≤40W total
System	Android 16, Rockchip RK3576 (4×A72 + 4×A53), Mali-G52 MC3
RAM / Storage	8GB DDR / 128GB eMMC

📄 Spec sheet (.pdf)📄 Spec sheet (.xls)

IFPD

RP Series RK3576-BD Interactive Flat Panel (LT)

65" / 75" / 86"

65"–86" RK3576 IFPD on Android 16, 4K IR touch, 80-pin OPS slot and dual front USB 3.0 ports.

Display Size	65" / 75" / 86"
Panel Type	Ultra HD Direct-type LED
Resolution	3840×2160 @60Hz
Brightness	350 cd/m²
Contrast Ratio	1200:1 (typ.)
Viewing Angle	178°
Touch Technology	IR touch, up to 40-point multi-touch (Windows)
Speakers	2×15W front (20W×2 option), ≤40W total
System	Android 16, Rockchip RK3576 (4×A72 + 4×A53), Mali-G52 MC3
VESA Mount	400×500 mm (65") / 400×700 mm (75") / 600×800 mm (86")

📄 Spec sheet (.pdf)📄 Spec sheet (.xls)

IFPD

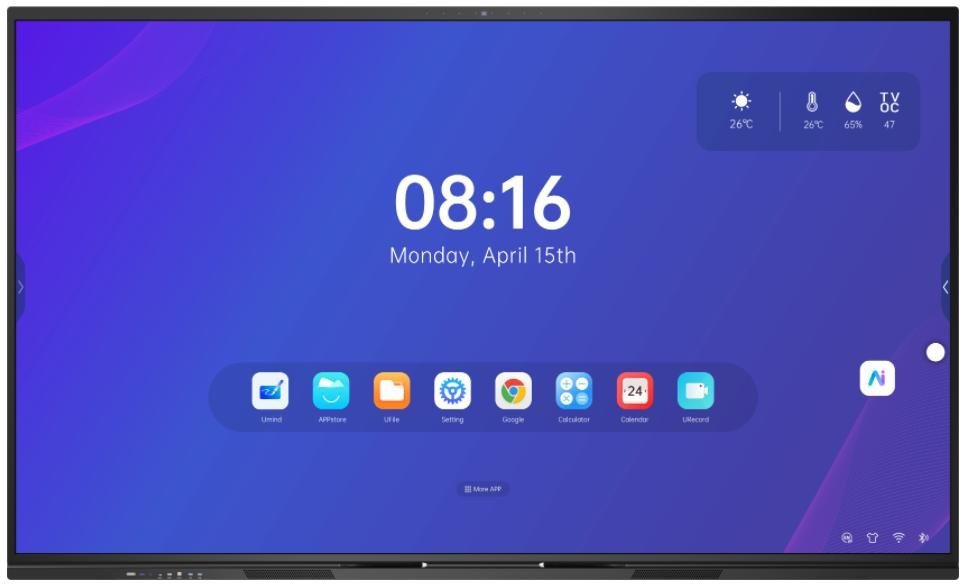

RP Series RK3576-BD 100" Interactive Flat Panel

100"

100" RK3576 IFPD on Android 16 with 4K IR touch, 8-microphone pickup and a 20W subwoofer for large halls.

Display Size	100"
Panel Type	Ultra HD Direct-type LED
Resolution	3840×2160
Brightness	350 cd/m²
Contrast Ratio	1200:1 (typ.)
Viewing Angle	178°
Touch Technology	IR touch, up to 40-point multi-touch (Windows)
Speakers	2×15W front + 20W×1 subwoofer (option), ≤60W total
System	Android 16, Rockchip RK3576 (4×A72 + 4×A53), Mali-G52 MC3
Net Weight	110 kg

📄 Spec sheet (.pdf)

IFPD

XS Series RK3588 V2.0 Interactive Flat Panel (Android 15)

55" - 110"

65"–86" RK3588 IFPD on Android 15 with 4K IR touch, WiFi 6 and up to 32GB DDR4 RAM.

Display Size	65" / 75" / 86"
Panel Type	Ultra HD Direct-type LED
Resolution	3840×2160 @60Hz
Brightness	Over 350 cd/m²
Contrast Ratio	1200:1 (typ.), dynamic 4000:1
Viewing Angle	178°
Touch Technology	IR touch, up to 40-point multi-touch (Windows)
Speakers	2×15W front (20W×2 option) + 20W subwoofer, ≤60W total
System	Android 15, Rockchip RK3588 (4×A76 + 4×A55 up to 2.4GHz), Mali-G610 MC4, 6 TOPS NPU
RAM / Storage	8 / 16 / 32GB DDR4, 128 / 256GB

📄 Spec sheet (.xls)

IFPD

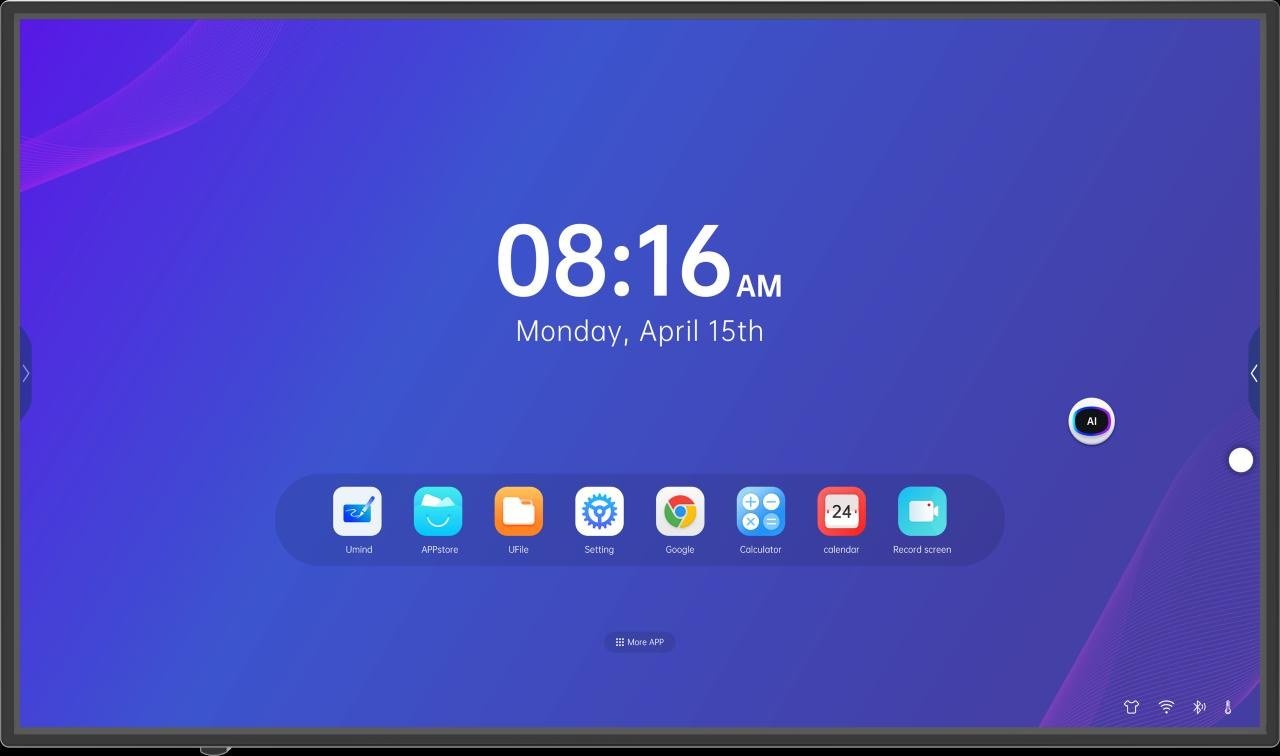

U+ Series RK3588 2.02 Interactive Flat Panel (Android 13)

55" / 65" / 75" / 86" / 98"

U+ Series 55"–98" RK3588 display with 4K panel, Android 13 and a slim 78mm-deep 55" chassis.

Display Size	55" / 65" / 75" / 86" / 98"
Bezel Color	Black plastic frame (55") / aluminum frame (65"–98")
Panel Type	Ultra HD Direct-type LED
Resolution	3840×2160 @60Hz
Brightness	350 cd/m²
Contrast Ratio	1200:1 (typ.)
Viewing Angle	89°/89°/89°/89° (typ., CR≥10)
Speakers	2×10W (55") / 2×20W (65"–98"), ≤20W / ≤40W total
System	Android 13, Rockchip RK3588 (4×A76 + 4×A55 up to 2.4GHz), Mali-G610 MC4
RAM / Storage	8 / 16 / 32GB DDR4, 128 / 256GB

📄 Spec sheet (.pdf)

IFPD

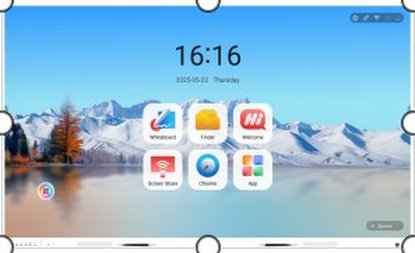

LT Series YS-EM3576 Dual-System Interactive Flat Panel

65" / 75" / 86"

65"–110" dual-system IFPD on Android 14 with RK3576, 6 TOPS NPU, 9ms touch response and PD 65W Type-C.

Display Size	65" / 75" / 86" / 98" / 110"
Panel Type	Ultra HD Direct-lit LED
Resolution	3840×2160 @60Hz (110": 120Hz)
Brightness	350 cd/m²
Contrast Ratio	1200:1 (typ.)
Viewing Angle	178°
Touch Technology	Infrared touch, up to 40-point multi-touch (under OPS), 1 mm accuracy, 9 ms response
Speakers	2×15W front (20W×2 option), ≤40W total
System	Android 14, Rockchip RK3576 (4×A72 + 4×A53), Mali-G52 MC3, 6 TOPS NPU
Ports	Type-C with PD 65W, HDMI in ×2, DP in, VGA, RS232, RJ45 ×2, WiFi 6 + AP

📄 Spec sheet (.xlsx)

IFPD

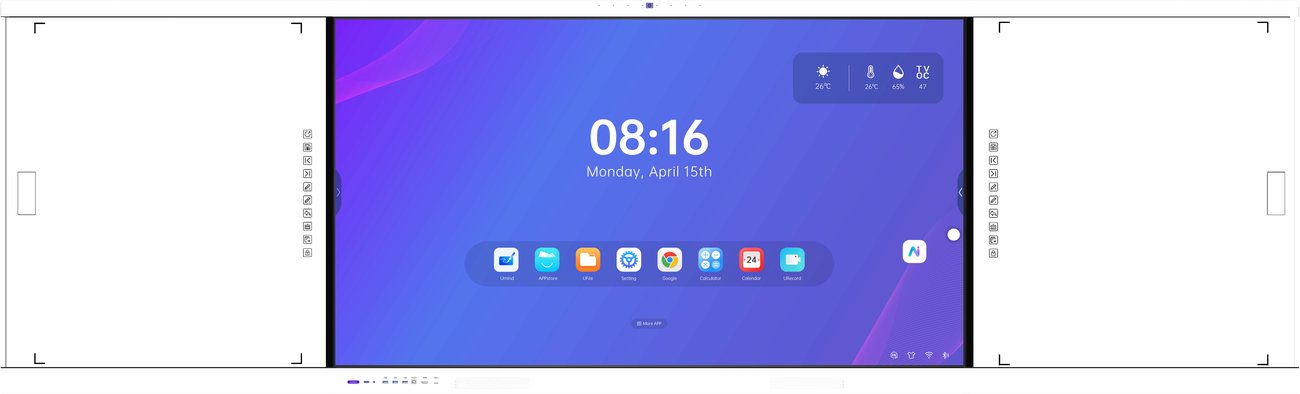

LT Dual Blackboard Series (Android 14 RK3576)

2×65" / 2×75" / 2×86"

Dual blackboard IFPD with Android 14 across 65"-86", 40-point IR touch, 4K UHD and interactive side panels.

Display Size	86" (series: 65" / 75" / 86")
Max Resolution	3840 x 2160 @60Hz
Brightness	350 cd/m2
Contrast Ratio	1200:1 (type)
Pixel Pitch	0.4935 mm x 0.4935 mm (86")
Touch Technology	Infrared touch, up to 40-point multi-touch under OPS (1 mm accuracy)
Dual Side Panels	2 panels (1 left + 1 right), 10 shortcut keys per side, IR 10-point touch
System	Android 14; Rockchip RK3576 (A72x4 + A53x4), 8GB DDR4 + 128GB Flash
Speakers	15W x 2 front (20W x 2 optional), total <=40W
Total Power	Max <350W / Eco <75W

📄 Spec sheet (.xlsx)

IFPD

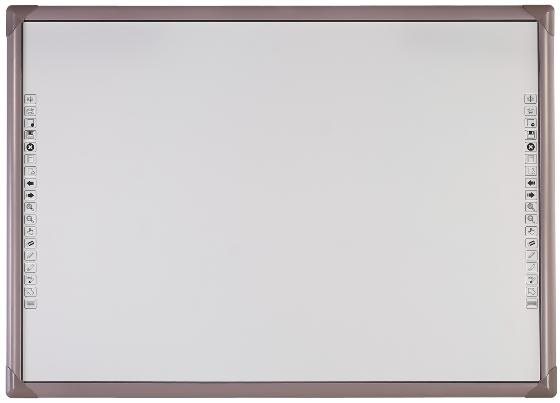

IWB P82 / P96 Smart Blackboard

P82 / P96

Infrared interactive whiteboard in 82" 4:3 and 96" 16:9 with 24-point touch, 36 hotkeys and USB-only power.

Aspect Ratio	4:3 (P82, 82") / 16:9 (P96, 96")
Active Area	1608 x 1128 mm (P82) / 1935 x 1128 mm (P96)
External Size	1721 x 1241 x 38 mm (P82) / 2050 x 1241 x 38 mm (P96)
Frame Material	ABS plastic (grey, orange or blue)
Touch Technology	Infrared touch, 24-point multi-touch, 8 ms response (<20 ms response speed)
Hotkeys	36 hotkeys (18 each side, for left/right hand use)
Interpolation Resolution	32767 x 32767
Lifespan	At least 7 years
Power Requirement	USB powered, <2W, operating current <200 mA
Net Weight	16 kg (P82) / 22 kg (P96)

📄 Spec sheet (.pdf)

IFPD

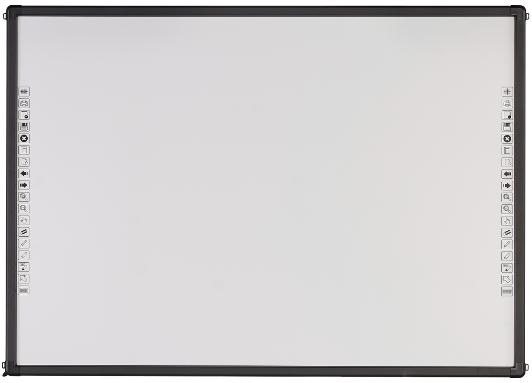

IWB S82 / S92 Smart Blackboard

S82 / S92

Aluminum-frame IR whiteboard in 82" 4:3 and 92/96" 16:9 with 24-point touch and 36 shortcut keys.

Aspect Ratio	4:3 (S82, 82") / 16:9 (S92, S96)
Active Area	1608 x 1128 mm (S82) / 1935 x 1128 mm (S92)
External Size	1688 x 1208 x 33 mm (S82) / 2017 x 1208 x 33 mm (S92)
Frame Material	Aluminum (black)
Touch Technology	Infrared touch, 24-point multi-touch, 8 ms response (<20 ms response speed)
Hotkeys	36 hotkeys (18 each side, for left/right hand use)
Interpolation Resolution	32767 x 32767
Lifespan	At least 7 years
Power Requirement	USB powered, <2W, operating current <200 mA
Net Weight	16 kg (S82) / 22 kg (S92)

📄 Spec sheet (.pdf)

IFPD

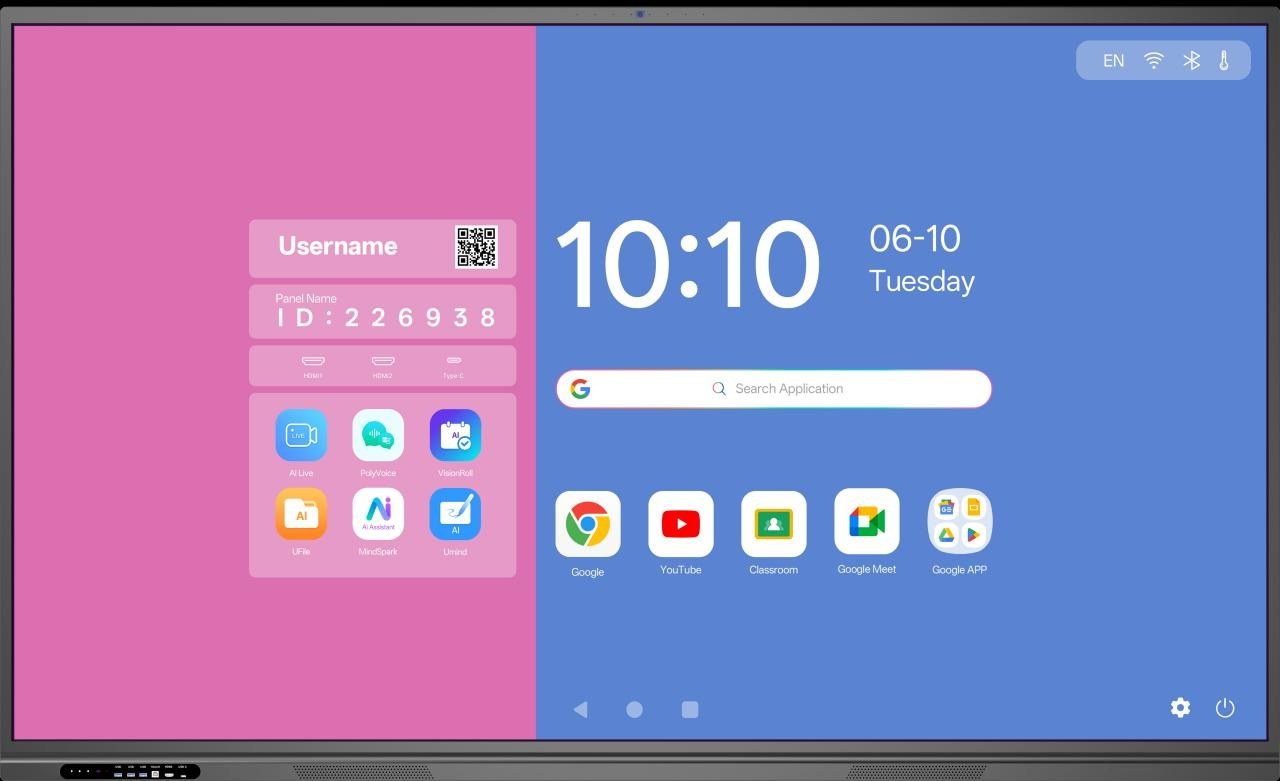

LTF S15 Android Free Interactive Flat Panel

65" / 75" / 86" / 98"

Android-free 4K IR touch panel in 65"-98", 40-point multi-touch and OPS-ready for Windows or Android modules.

Display Size	65" / 75" / 86" / 98"
Resolution	3840 x 2160 @60Hz
Brightness	350 cd/m2 (450 cd/m2 optional)
Contrast Ratio	1200:1 (4000:1 optional)
Pixel Pitch	0.372 / 0.429 / 0.4935 / 0.5622 mm (65"/75"/86"/98")
Viewing Angle	178 degrees
Touch Technology	IR touch, max 40 points (1 mm precision over 90% of area)
Speakers	15W x 2 front
Total Power	Max <290W (65") / <320W (75") / <350W (86") / <510W (98"), Eco <75W
Lifespan	50,000 hours

📄 Spec sheet (.pdf)

IFPD

Smart Portable Screen (随心屏)

—

Portable 32" Android 12 touch screen on a 6-7h battery with WiFi 6, 10-point touch and tilt/rotate/lift adjustment.

Display Size	32" LCD (IPS)
Resolution	1920 x 1080
Brightness	300 cd/m2
Contrast Ratio	1000:1
Touch Technology	G+G capacitive touch, 10-point
System	Android 12; MTK8788 octa-core (4x A73 2.0GHz + 4x A53 2.0GHz), 4GB RAM (6GB optional), 64GB storage (128GB optional)
Battery	Li-ion 12V/15000mAh, 6-7 hours runtime
Speakers & Mic	4ohm/5W x 2 speakers; dual microphone with noise reduction and echo cancellation
Connectivity & Ports	WiFi 6 (802.11a/b/g/n/ac/ax), 100M/1000M Ethernet, Bluetooth 5.0; Type-C, HDMI IN (1920x1080@30Hz), USB 2.0, MIC-IN, 3.5mm earphone
Adjustment	Tilt -20 to 15 degrees, rotate 90 degrees, swivel +/-15 degrees, lift 150 mm

📄 Spec sheet (.xls)

IFPD

V100 Series Interactive Display

—

Entry-level 4K IR panel in 65"-86" with Android 14, 8GB+128GB, dual-pen 40-point touch and 20W x 2 + subwoofer audio.

Display Size	65" (LTK65V100) / 75" (LTK75V100) / 86" (LTK86V100)
Resolution	3840 x 2160 @60Hz
Brightness	400 cd/m2
Contrast Ratio	1200:1
Pixel Pitch	0.372 / 0.429 / 0.4935 mm (65"/75"/86")
Viewing Angle	178 degrees
Touch Technology	IR touch, max 40-point multi-touch in Windows and 20 points in Android; dual-pen
System	Android 14 (Riotouch Central); GK6780V100, 8x A55 1.5GHz, Mali-G52 MP2(2EE), 5T NPU, 8GB RAM + 128GB Flash
Speakers	20W x 2 front speakers + 20W x 1 subwoofer, amplifier total <=60W
Total Power	Max <290W (65") / <320W (75") / <350W (86"), Eco <75W

📄 Spec sheet (.pdf)

LED Display

LF Series TK8 COB LED Smart Board

108" / 136" / 163"

COB LED smart board in 108"-163" with 3840Hz refresh, 600 cd/m2 and OPS/AI-box expansion for classrooms and halls.

Display Size	108" / 136" / 163"
Panel Type	COB LED, white aluminum frame (black optional)
Max Resolution	1920 x 1080 @60Hz (108"); 2880 x 1600 and 3840 x 2160 @60Hz (136", 163")
Pixel Pitch	P1.25 (108"); P1.25 / 0.93 (136", 163")
Brightness	600 cd/m2, uniformity >=98%
Contrast Ratio	5000:1
Refresh Rate	3840 Hz
Touch Technology	Infrared touch, max 10 points, 2 mm accuracy, 10 ms single-point response
Total Power	655W (108"); 1450/1650W (136"); 1950/2200W (163")
Expansion	ADV-TK8 motherboard, 80-pin OPS slot: RK3588/RK3576 AI box or i5/i7 OPS PC

📄 Spec sheet (.pdf)📄 Spec sheet (.xlsx)

LED Display

LF Series RK3588 COB LED Smart Board

108" / 136" / 163"

RK3588 Android 13 COB LED board in 108"-163" with 178-degree view, 10-point IR touch and 8-mic array for large spaces.

Display Size	108" / 136" / 163"
Panel Type	LED with COB packaging, white aluminum frame (black optional)
Resolution	1920 x 1080 @60Hz
Pixel Pitch	P1.25
Brightness	600 cd/m2
Viewing Angle	178 degrees
Touch Technology	IR touch, max 10 points, 2 mm precision, 10 ms response time
System	Android 13 (Riotouch Central); RK3588, quad Cortex-A76 + quad Cortex-A55 2.2-2.4GHz, Mali-G610 MC4, 6T NPU, RAM 4/8/16GB, Flash 32/128/256GB
Speakers	15W x 2, total power amplifiers <=30W
Microphone	8 wide-area microphones, auto switch (Windows/Central)

📄 Spec sheet (.pdf)

LED Display

KI Series COB LED Poster Display

70" / 83"

Freestanding COB LED poster in 70" and 83" with P1.25 pitch, 600 cd/m2, 3840Hz refresh and optional 10-point touch.

Display Size	70" (KI 70) / 83" (KI 83)
Panel Type	COB LED, aluminum frame white (black optional)
Max Resolution	480 x 1350 (KI 70) / 480 x 1620 (KI 83)
Pixel Pitch	P1.25
Brightness	600 cd/m2, uniformity >=98%
Contrast Ratio	5000:1
Refresh Rate	3840 Hz
Viewing Angle	160 degrees (H) / 160 degrees (V)
Touch Technology	Optional 10-point IR touch, 1 mm accuracy (not usable in spliced video walls)
Total Power	<=210W (KI 70) / <=250W (KI 83), standby <=0.5W

📄 Spec sheet (.xlsx)📄 Spec sheet (.xlsx)

LED Display

KI-92 Freestanding LED Poster Display

92"

92-inch GOB LED poster with P1.86 fine pitch, 600 cd/m2, 3840Hz refresh and <=210W power for retail and lobbies.

Display Size	92" (KI 92 in the KI 92 / KI 83 table)
Panel Type	GOB (KI 92) / COB (KI 83), aluminum frame white (black optional)
Pixel Pitch	P1.86 (KI 92) / P1.25 (KI 83)
Brightness	600 cd/m2, uniformity >=98%
Contrast Ratio	5000:1
Refresh Rate	3840 Hz
Viewing Angle	160 degrees (H) / 160 degrees (V)
Lifespan	50,000 hours
Speakers	2 speakers, 5W x 2, total power <=10W
Total Power	<=210W (KI 92) / <=250W (KI 83), standby <=0.5W

📄 Spec sheet (.pdf)

LED Display

Indoor / Outdoor LED Poster Display

—

COB P1.25 LED poster in 70" and 83" with 3840Hz refresh, 160-degree view, optional 10-point IR touch and OPS expansion.

Screen Size	70" / 83" optional
Display Tech	COB packaging, P1.25 pixel pitch
Brightness	600 cd/m2
Contrast Ratio	5000:1
Refresh Rate	3840 Hz with 160-degree ultra-wide viewing angle
Touch	Optional 10-point infrared touch, 2-8 ms fast response
I/O	Full configuration HDMI / USB / Type-C / RS232
Lifespan	50,000 hours
Power	Standby <=0.5W; total power <=30W
Expansion	AI Box / OPS PC (2-in-1 optional)

📄 Spec sheet (.pdf)📄 Spec sheet (.pdf)

Spec sheet available
on request

LED Display

AD LED 55" Video Wall Display

55"

COB LED video wall cubes with 1.26 mm pixel pitch, 450 cd/m2 brightness and 3840 Hz refresh for seamless walls.

Display Size	55" (diagonal)
Pixel Pitch	1.26 mm
LED Type	COB (chip-on-board)
Cabinet Size	1209.6 x 680.4 x 35 mm
Brightness	450 cd/m2
Contrast Ratio	12000:1
Refresh Rate	3840 Hz
Viewing Angle	170 / 170 degrees
Power Consumption	240 W/m2 max, 60 W/m2 avg
Lifespan	100,000 hours

📄 Spec sheet (.xls)

Digital Signage

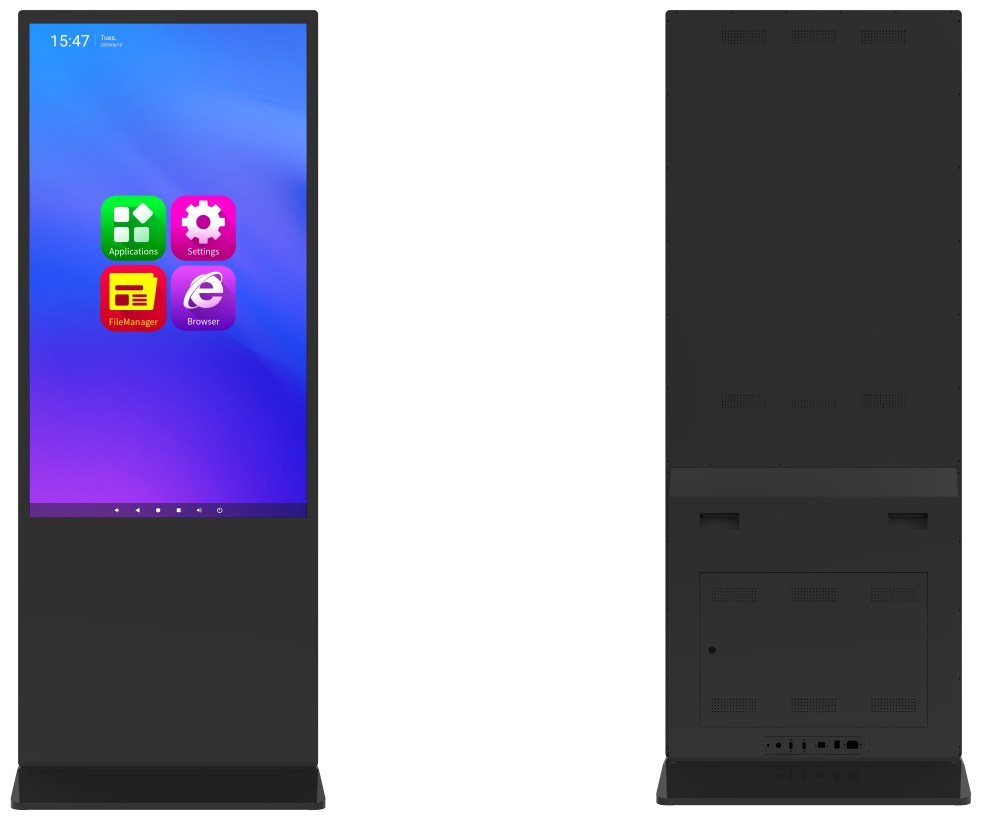

Vertical Advertising Display (YS T9679)

43"-65" / 49" / 75"

Slim floor-standing vertical displays, 43"-75" 4K UHD, with optional 10-point touch and Android 14.

Display Size	43" / 49" / 55" / 65" / 75"
Resolution	3840 x 2160 (UHD)
Brightness	350 cd/m2 (43"-65"), 200 cd/m2 (49"/75")
Contrast Ratio	1200:1
Touch	Capacitive or infrared (optional), 10-point
System	Android 14.0, MT9679, quad-core Cortex-A73
RAM / Storage	4 GB RAM (8 GB optional) / 16 GB (up to 128 GB)
Ports	RJ45 1000M, USB 2.0, USB 3.0, HDMI IN, TYPE-C, Audio IN/OUT
Power Consumption	<80 W (43") to <140 W (75"), Eco <25 W, standby <=0.5 W
Lifespan	50,000 hours

📄 Spec sheet (.xlsx)📄 Spec sheet (.xlsx)📄 Spec sheet (.xlsx)

Digital Signage

AD43-55 Vertical Advertising Machine (YS T982)

43" / 49" / 55"

Ultra-slim 43"-55" vertical advertising machines with IR touch, anti-glare zero-bonding glass and Android 11.

Display Size	43" / 55"
Resolution	1920 x 1080 (FHD)
Brightness	200 cd/m2
Contrast Ratio	1200:1
Glass Panel	Mohs-7 tempered glass, anti-glare with zero bonding
Touch Technology	IR touch (PCAP optional), max 10 points
Touch Accuracy	2 mm (over 90% area)
System	Android 11.0, Amlogic T982, quad-core Cortex-A55
Ports	12V DC-IN, RJ45, USB OTG, USB 3.0, HDMI IN, TF card, earphone
Power Consumption	<80 W (43") / <100 W (55"), Eco <25 W, standby <=0.7 W

📄 Spec sheet (.pdf)📄 Spec sheet (.xlsx)

Digital Signage

TH-B43-55 Lifting Advertising Machine (YS T982)

43" / 55"

43"-55" FHD liftable advertising machine with 10-point capacitive touch, Android 11 and two screen positions.

Display Size	43" / 55"
Resolution	1920 x 1080 (FHD)
Brightness	200 cd/m2
Contrast Ratio	1200:1
Touch Technology	Capacitive touch, max 10 points
Touch Accuracy	1 mm (over 90% area)
Screen Dimensions (WxDxH)	1555 x 570(down)/995(up) x 777 mm (43") / 1824 x 570/995 x 924 mm (55")
System	Android 11.0, Amlogic T982, quad-core Cortex-A55, 2 GB RAM, 16 GB storage
Ports	12V DC-IN, RJ45, USB OTG, USB 3.0, HDMI IN, TF card, earphone
Power Consumption	<80 W (43") / <100 W (55"), Eco <25 W, standby <=0.7 W

📄 Spec sheet (.pdf)📄 Spec sheet (.xlsx)

Digital Signage

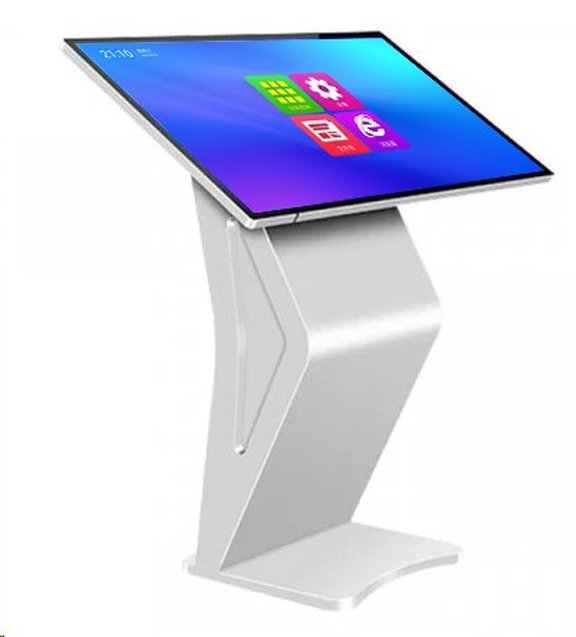

Seat-Mounted Advertising Machine

32" / 43"

Seat-mounted 32"/43" UHD advertising terminals with 10-point touch and Android or Windows platform options.

Display Size	32" / 43"
Resolution	3840 x 2160 (UHD)
Pixel Pitch	0.18159 x 0.18159 mm (32") / 0.2451 x 0.2451 mm (43")
Brightness	200 cd/m2
Contrast Ratio	1200:1
Touch	Capacitive touch, 10-point, 1 mm accuracy
System Options	Android 12 (RK3588) / Android 13 (A527M) / Windows 11 (i5-1140G7)
Ports	HDMI IN, USB 3.0, USB 2.0, RJ45, TYPE-C, audio, MIC IN / DP OUT (Windows)
Power Consumption	<60 W (32") / <80 W (43"), Eco <25 W, standby <=0.5 W
Lifespan	50,000 hours

📄 Spec sheet (.xlsx)📄 Spec sheet (.xlsx)📄 Spec sheet (.xlsx)📄 Spec sheet (.pdf)📄 Spec sheet (.pdf)

Touch Table & Stand

32"-55" Smart Interactive Touch Table (YS T9679)

32" / 43" / 55"

All-in-one interactive touch tables, 32"-55" UHD, 10-point capacitive touch and Android 14 in one cabinet.

Display Size	32" / 43" / 55"
Resolution	3840 x 2160 (UHD)
Brightness	200 cd/m2
Contrast Ratio	1200:1
Touch Technology	Capacitive touch, 10-point, 1 mm accuracy
System	Android 14.0, MT9679, quad-core Cortex-A73, 4 GB RAM, 16 GB storage
Ports	RJ45 1000M, USB 2.0, USB 3.0, HDMI IN, TYPE-C, Audio IN/OUT
Speakers	2 x 5 W (total <=10 W)
Power Consumption	<60 W (32") to <100 W (55"), Eco <25 W
Product Dimensions (WxDxH)	1100 x 600 x 450 mm (32") / 1276.5 x 760 x 450 mm (43") / 1650 x 860 x 450 mm (55")

📄 Spec sheet (.xlsx)

Touch Table & Stand

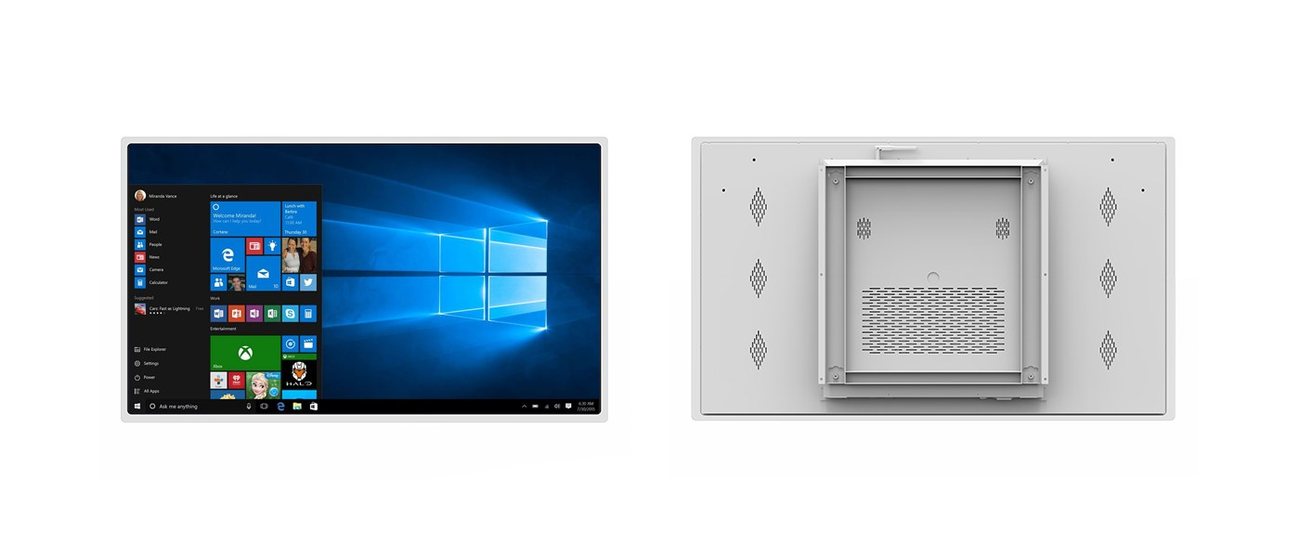

43" Lifting Interactive Touch Table

43"

43" UHD touch table with electric lift and Android 14 or Windows 10 platform for collaborative meeting rooms.

Display Size	43"
Resolution	3840 x 2160 (60 Hz Android / 30 Hz Windows)
Brightness	200 cd/m2
Contrast Ratio	1200:1
Touch Technology	Capacitive touch, max 10 points, 1 mm accuracy
Lift System	Electric lifting and lowering touch table
System Options	Android 14 + MT9679 / Windows 10 + Intel i5-8400 (B250), 16-32 GB DDR4, 256-512 GB SSD
RAM / Storage (Android)	4 GB RAM (8 GB optional) / 16 GB (up to 128 GB)
Power Consumption	<80 W (Android) / <120 W (Windows), Eco <25 W, standby <=0.7 W
Screen Dimensions	985 x 580 x 45 mm

📄 Spec sheet (.xlsx)📄 Spec sheet (.xlsx)

Touch Table & Stand

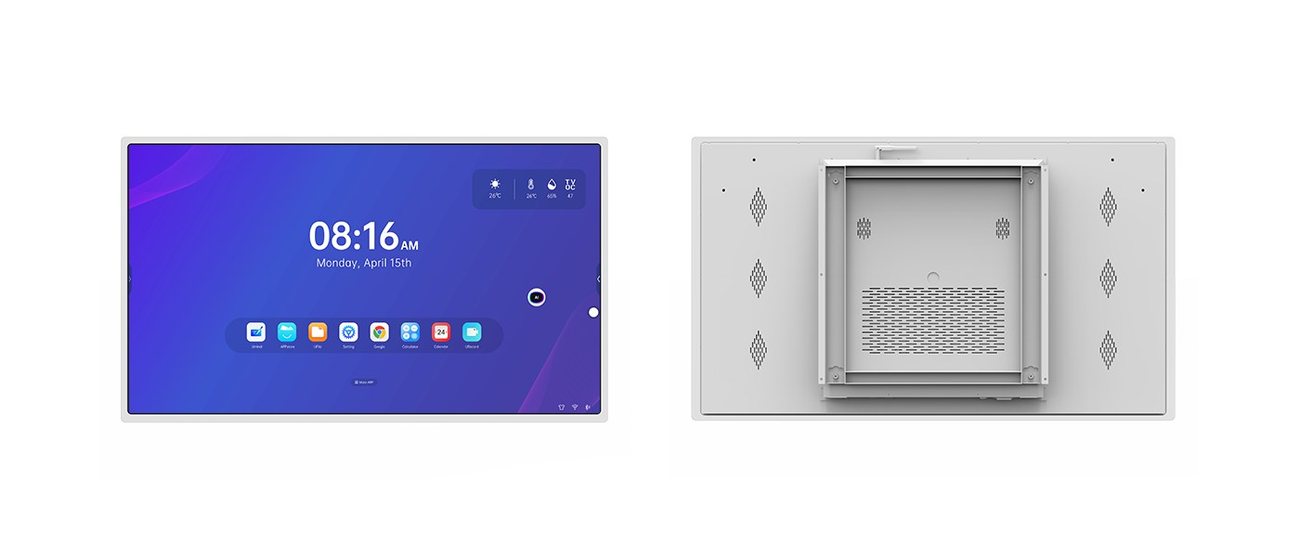

Liftable Interactive Touch Table RK3576

—

Motorised liftable 43"/55" 4K touch tables with RK3576 Android 14, 6T NPU and 640-1290 mm height range.

Display Size	43" / 55"
Resolution	3840 x 2160 @ 60 Hz
Brightness	200-350 cd/m2
Contrast Ratio	1200:1
Color Depth	1.07 billion colors
Touch	Capacitive, max 10 points, 1 mm accuracy
System	Android 14, RK3576 (4x Cortex-A53 + 4x Cortex-A72, up to 2.2 GHz), 6T NPU
RAM / Storage	4 GB / 8 GB RAM, 32 GB / 128 GB flash
Height Adjustment	640 mm (min) to 1290 mm (max)
Power Consumption	<100 W (43") / <120 W (55"); lift motor 120 W

📄 Spec sheet (.xls)

Touch Table & Stand

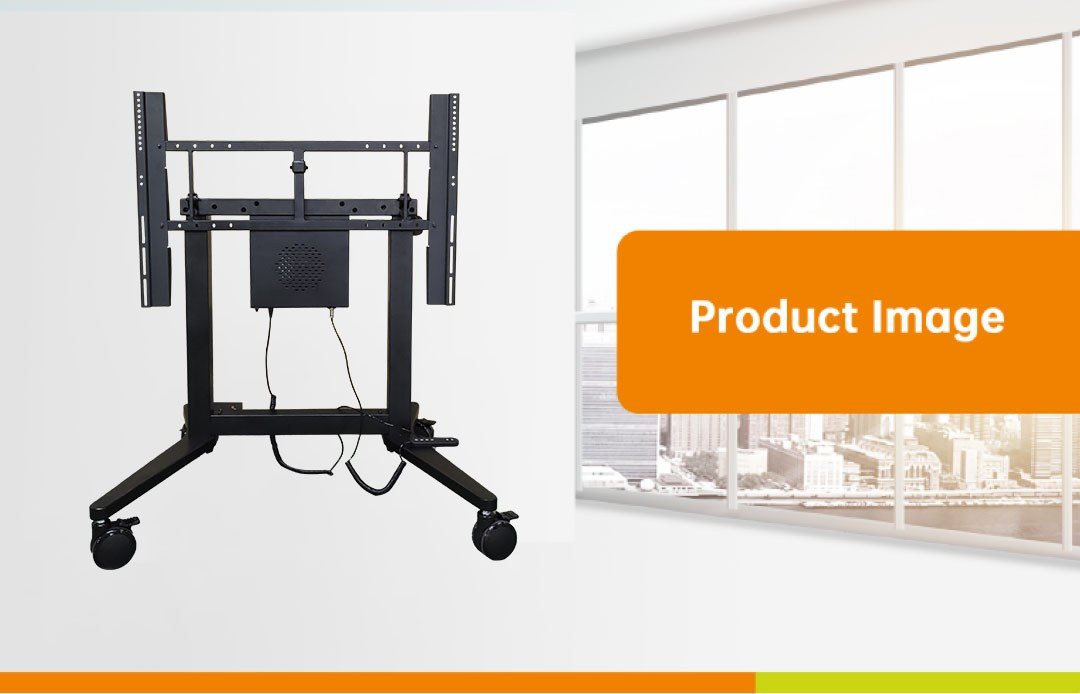

11ZJ-39 Mobile Stand for 98"-110"

98" - 110"

Heavy-duty black mobile stand for 98"-110" displays, 200 kg load capacity and up to 1000 x 600 mm VESA.

Product Model	KZE21
Compatible Size	98"-110"
Max Load Capacity	200 kg (440 lbs)
Minimum VESA	100 x 100 mm
Maximum VESA	1000 x 600 mm
Available Color	Black
Height Adjustment	0-270 mm
Packaging Dimensions	1497 x 833 x 77 mm
Net Weight	30.5 kg (estimated)
Gross Weight	32.5 kg (estimated)

📄 Spec sheet (.pdf)

Touch Table & Stand

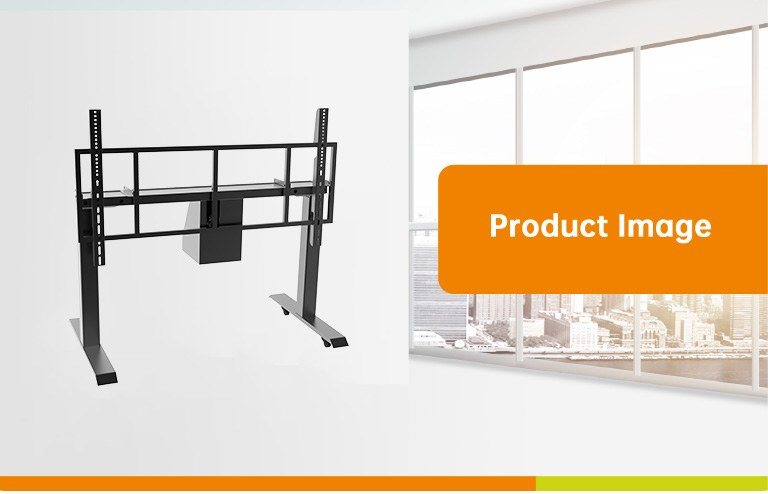

EFL72 / EFL73 Electric Mobile Stand

—

Electric mobile stands for 65"-86" panels, up to 120 kg load, with flip and 900-1700 mm height adjustment.

Models	EFL72 / EFL73
Compatible Size	65"-86"
Load Capacity	<=120 kg (EFL72) / <=110 kg (EFL73)
Flip Angle	90 +/- 1 degree (EFL72)
Height Adjustment	900-1700 mm (EFL72) / 1200-1700 mm (EFL73)
VESA	800 x 600 mm
Product Dimensions	1006 x 1213 x 848 mm (EFL72) / 1100 x 1500 x 848 mm (EFL73)
Packaging Dimensions	1041 x 966 x 246 mm (EFL72) / 1301 x 834 x 111 mm (EFL73)
Net Weight	Approx. 52 kg (EFL72) / 33.8 kg (EFL73)
Gross Weight	Approx. 58 kg (EFL72) / 35.3 kg (EFL73)

📄 Spec sheet (.pdf)📄 Spec sheet (.pdf)

OPS & AI Box

OPS-C Module (Intel i7-13650HX)

i5 / i7 options

OPS-C slot-in PC module with Intel Core i7-13650HX, up to 64 GB DDR4 and 4K@60 Hz HDMI, DP and 80-pin output.

CPU	Intel Core i7-13650HX, 2.4-4.9 GHz, 14 cores / 20 threads
Memory	2 x SO-DIMM DDR4 2666/3200 MHz, up to 64 GB
Storage	2 x M.2 2280 (NVMe + SATA) and 1 x 2.5" SATA HDD/SSD
Graphics	Intel UHD Graphics for 13th Gen, synchronous dual display
Display Output	HDMI, DP and 80-pin socket, each 3840 x 2160 @ 60 Hz
Audio	ALC897 HD audio, 1 x line-out, 1 x mic in
Network / Wireless	10/100/1000 Mbps Realtek Gigabit LAN, M.2 2230 WiFi + BT
USB	6 x USB 3.0, 1 x Type-C
Power	DC 19 V 4.74 A
Dimensions	180 x 120 x 30 mm (type A) / 195 x 180 x 42 mm (type B)

📄 Spec sheet (.pdf)

OPS & AI Box

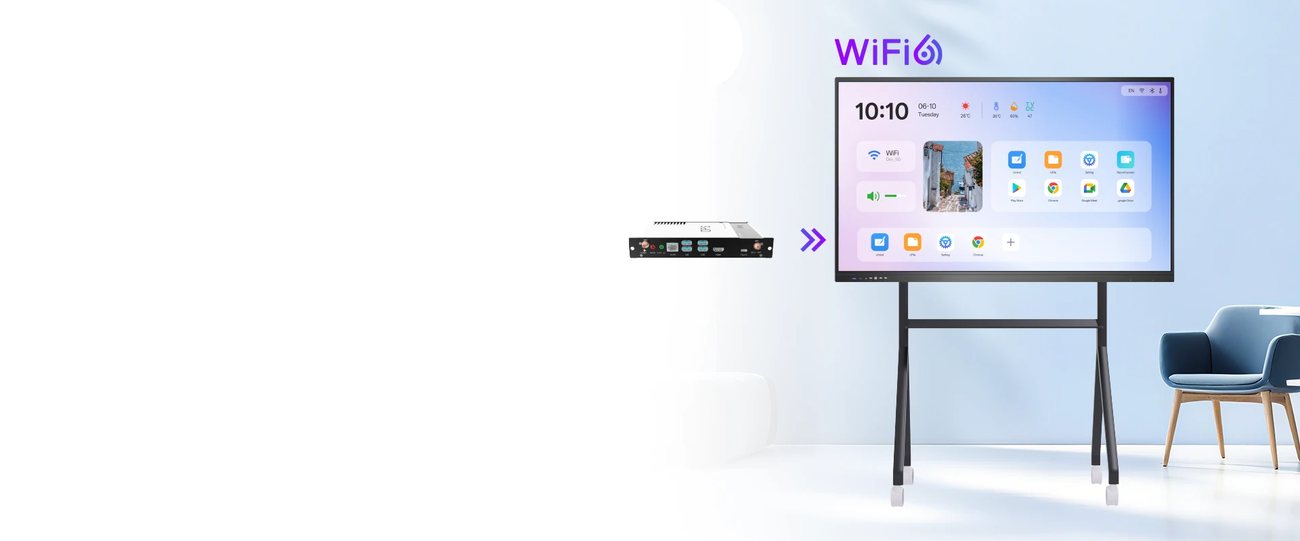

AI Box RK3576 (Android 14)

RK3576

RK3576 AI box with 6T NPU, 4K codec and 80-pin OPS socket, adding AI vision to any interactive display.

CPU	RK3576 octa-core 64-bit (4x Cortex-A53 + 4x Cortex-A72), up to 2.2 GHz
GPU	Mali-G52 MC3 @ 1 GHz
NPU	6T
Memory / Storage	DDR5 8 GB / 16 GB, eMMC 128 GB / 256 GB
Wireless	WiFi 6 (IEEE 802.11a/b/g/n/ac), Bluetooth 5.2/4.2/2.1
Video	H.264, H.265, VP9, AV1, MPEG-1/2/4, 4K encode and decode
Ports	HDMI in, TYPE-C out, 2 x USB 2.0, 2 x USB 3.0, RJ45 1000M, MIC in, earphone, NFC
Power	80-pin 19 V or Type-C 12-19 V 5 A, 10 W max consumption
Dimensions	180.4 x 119 x 30 mm
Casing	Silver-white sheet metal + aluminum

📄 Spec sheet (.xls)
