LED Bar Counter: What P1.86 GOB Actually Changes at Bar Height
A bar counter is the worst place in a venue for a screen. It sits at hip and elbow height, it gets knocked, it collects condensation from glasses, and everyone standing in front of it is holding a phone. That is the real specification an LED bar counter has to survive — and it is why the numbers on a P1.86 GOB data sheet matter more here than on a wall-mounted poster.

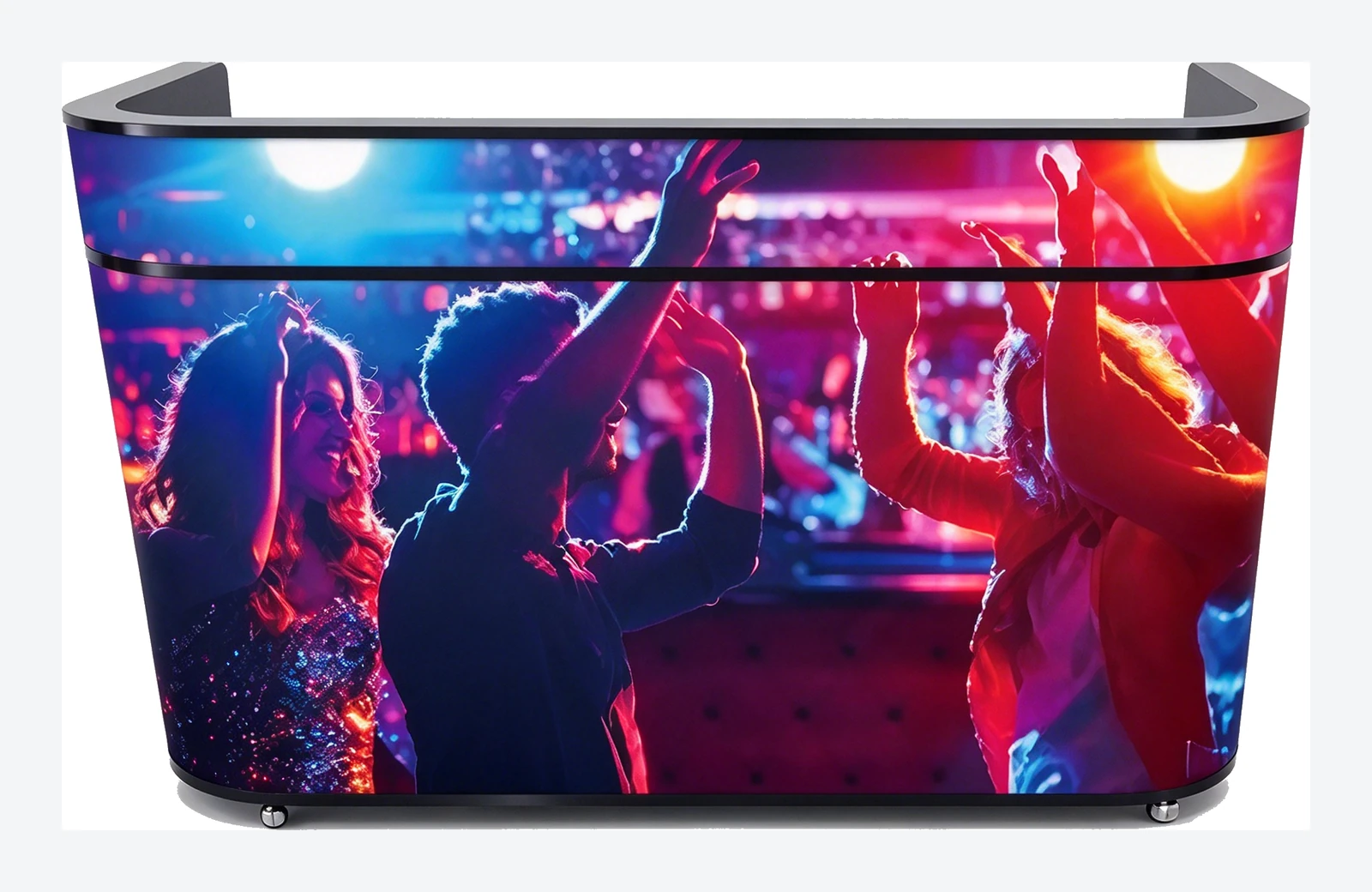

This article goes through the LED bar counter as it is actually built — a curved LED front on a counter body, assembled from steel cabinets with front service access — and the four planning items that decide whether an installation goes smoothly.
1. What the product actually is

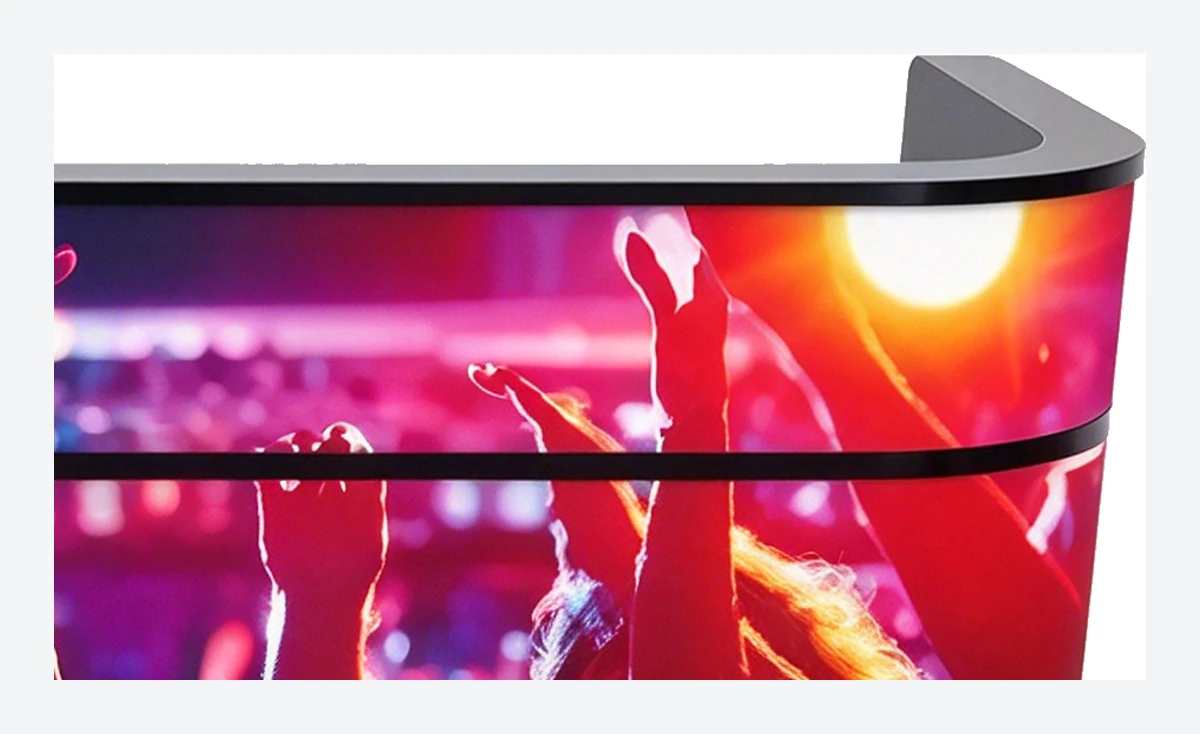

It is not a TV placed behind a bar. It is a counter whose front face is the display. The LED front is assembled from steel cabinets; each cabinet carries a 2 × 6 arrangement of 160 × 320 mm modules and covers 0.6144 m² at 344 × 516 px. Cabinet count sets the length of the counter, and the counter body is built around that length — which is why the specification sheet deliberately leaves overall dimensions open and states them per project.
Two structural points matter: modules sit on a silicone soft bottom shell (218 g each), and the whole front is serviceable from the front — which decides how much space you must leave behind the counter.
2. The numbers that decide whether it works in a bar
| Parameter | Value | Why it matters at bar height |
|---|---|---|
| Pixel pitch | 1.86 mm | Sharp at 1–2 m viewing distance, which is where guests stand |
| LED packaging | GOB (glue on board) | The LED face is encapsulated, not just masked — the difference against elbows and spills |
| Module size / resolution | 160 × 320 mm · 172 × 86 px | Sets the visible module grid if a repair is ever needed |
| Module arrangement | 2 × 6 per cabinet | Cabinet proportions; changes the curve geometry |
| Single cabinet | 0.6144 m² · 344 × 516 px | How much front one cabinet covers, so you can count cabinets for a given length |
| Pixel density | 288,906 dots/m² | Confirms P1.86 rather than a stretched P2.5 |
| LED lamp / pixel | SMD1515 · 1R1G1B full colour | Standard indoor lamp and full-colour pixel configuration |
| Refresh rate | 3,840 Hz (43 scan) | Phones and cameras filming the counter see no scan lines |
| Frame rate | 60 Hz | Matches normal video content without judder |
| Brightness | 650 cd/m² | Ceiling, not a target — in a dark bar you will run it well below |
| Contrast | 6,000:1 | Black level when the venue lights are down |
| Colour temperature | 6,500–12,000 K | Warm hospitality look or cool retail look, set per venue |
| Protection | IP5x (front) | Dust-protected face — not a water-jet rating, so no hosing down |
| Maintenance | Front maintenance | Service without pulling the counter away from the wall |
| Signal interface | HUB75 (no cascade interface) | Each cabinet needs its own data feed — plan ports before you order |
| Installation | VESA wall mount / standard fixed | Fixing method for the counter body |
| Remote publishing | Yes (Wi-Fi antenna supplied) | Content updates without touching the unit |
| Lifespan | 100,000 h typical | Roughly a decade of evening trading hours |
| Operating / storage | −10–45 °C / −20–55 °C | Storage in an unheated stockroom is covered |
| Humidity | 10–85% / 15–80% non-condensing | The word that matters is non-condensing |
3. GOB and IP5x: what the sheet promises, and what it does not
GOB means the LED face is encapsulated in a layer of glue over the board rather than left with an open mask — the difference between a counter you can wipe after a spill and one where liquid reaches the lamp. With the silicone soft bottom shell, a knock is absorbed by the module mount instead of the PCB.
What the sheet does not say is equally important: the protection rating is IP5x on the front only. That is a dust rating, not a waterproof rating, and there is no rating given for the rear or for jets of water. So the honest rule for staff is: wipe, do not flood. And the counter belongs indoors — a terrace bar, a pool bar or an outdoor festival counter is a different product, not this one with a cover on it.
4. 3,840 Hz refresh: the specification buyers forget
A bar is a venue where guests film. On a low refresh panel every clip picks up horizontal banding as the camera shutter catches the panel mid-scan. At 3,840 Hz with 43 scan the front reads clean on a phone, and photographs do not come out half-dark.
This is where quotes differ in practice: two counters can both say “P1.86” and look the same in a lit showroom, but only one behaves on camera. If a supplier cannot state refresh rate and scan count, that is the answer.
5. 650 nits and 6,000:1 in a dark room
650 cd/m² is a ceiling, not something you run all night: in a dim bar the front sits far below it, because contrast against a dark room is what makes the image read. 6,000:1 is the figure that decides whether blacks stay black or turn grey once the lighting comes down.
The colour temperature range, 6,500–12,000 K, is a venue decision: hotel bars usually want the warmer end, retail counters the cooler end. Set it once at commissioning and write it down.
6. Four things to settle before you order
- Cabinet count and curve. One cabinet covers 0.6144 m² of front. The number of cabinets sets the counter length and the arc, so the curve is agreed before the counter body is built, not after.
- One data feed per cabinet. The HUB75 interface on this product is explicitly no cascade. Cabinets are not daisy-chained, so the sending card and the port count have to be planned for the number of cabinets. This is the single most common surprise on multi-cabinet counters.
- Front service access. Because the front opens, you do not need a service corridor behind the counter — which in a tight bar is often the difference between this product fitting and not fitting.
- Content aspect. The front is a wide, short strip; 16:9 artwork will letterbox or lose its top and bottom. Get the cabinet-layout drawing before the design agency starts.
Power is straightforward: a 3 m power cord and a Wi-Fi antenna ship with each unit, and publishing is remote — nobody has to climb behind the counter to change a promotion.
Which of the three counter-height products fits
| Product | Where it goes | Pitch and protection | Service |
|---|---|---|---|
| LED bar counter (this article) | Bar fronts, lounge counters, event and exhibition bars | P1.86 GOB, IP5x front | Front access, HUB75 per cabinet |
| Curved LED front desk | Hotel lobbies, corporate reception desks | P1.25–P2.5, IP65 GOB with app control | Front access |
| LED poster display | Shop windows, wayfinding, free-standing promotion | Double-sided free-standing unit | Removable from the base |
The bar counter is the only one of the three built to sit at working height with drinks on the surface in front of it. If the counter is instead a reception desk in a hotel lobby, the curved LED front desk display is the closer product. For a free-standing promotional screen rather than a built-in counter, see the LED poster range; large-format walls are covered by the LED video wall line at 108″–163″. Full module, cabinet and power data is on the product specification pages.
7. Frequently asked questions
Can the LED bar counter be used outdoors?
No. The front is rated IP5x only, which is a dust rating on the front face, and no water-jet rating is given. It is an indoor product for bars, lounges, hotel counters, showrooms and exhibition stands.
What happens if a drink is spilled on the front?
The face is GOB-encapsulated and modules sit on a silicone soft bottom shell, so a splash wipes off with a damp cloth. Standing liquid or a jet of water is outside the rating — clear it immediately.
Will it look right on phone video and photos?
Yes. The 3,840 Hz refresh rate with 43 scan keeps the front clean on phone cameras, with no horizontal banding in video and no half-dark frames in photographs.
How long can the counter front be?
The length is set by the number of cabinets, each covering 0.6144 m² of front at 344 × 516 px. Because the signal interface is HUB75 without cascade, each cabinet needs its own data feed, so the sending card and port count are planned together with the cabinet count.
Does the screen have to be switched off to service it?
Service is from the front: the face opens for module and cabinet access, so the counter is not pulled away from the wall. Spare modules are 218 g each, shipped individually.
