Outdoor LED A-Frame Poster Display
An outdoor LED poster for storefronts, entrances and events.
Put the display where customers arrive, then update the content from your phone. Choose from five pixel pitch options. Brightness and GOB protection depend on the model; battery power is optional.
Outdoor LED Poster: Product Overview
▶ Product demonstration video
IP65 Complete Unit
Five Pixel Pitches
Mobile Content Updates
Caster Wheels
Engineered for Outdoor Environments
Every component built with one goal: reliable outdoor digital signage that works rain or shine, day after day.
Outdoor protection and model details
The complete unit is specified as IP65, with rear maintenance and caster wheels. Battery power is optional. Battery capacity and runtime depend on the selected configuration. Contact us for the specifications of your chosen model.

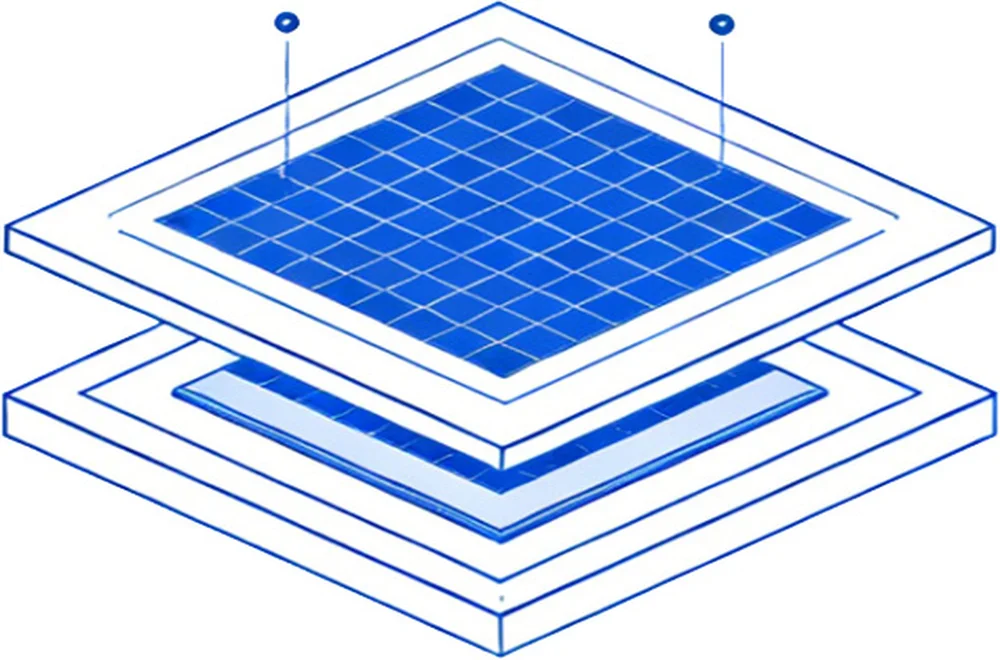

GOB on Selected Pixel Pitches
The P1.538, P1.86 and P2 models use 1010 LEDs with GOB. The P2.5 and P3.076 models use 1415 LEDs without GOB. Check the model when choosing this protection.
- P1.538 / P1.86 / P2: 1010 + GOB
- P2.5 / P3.076: 1415

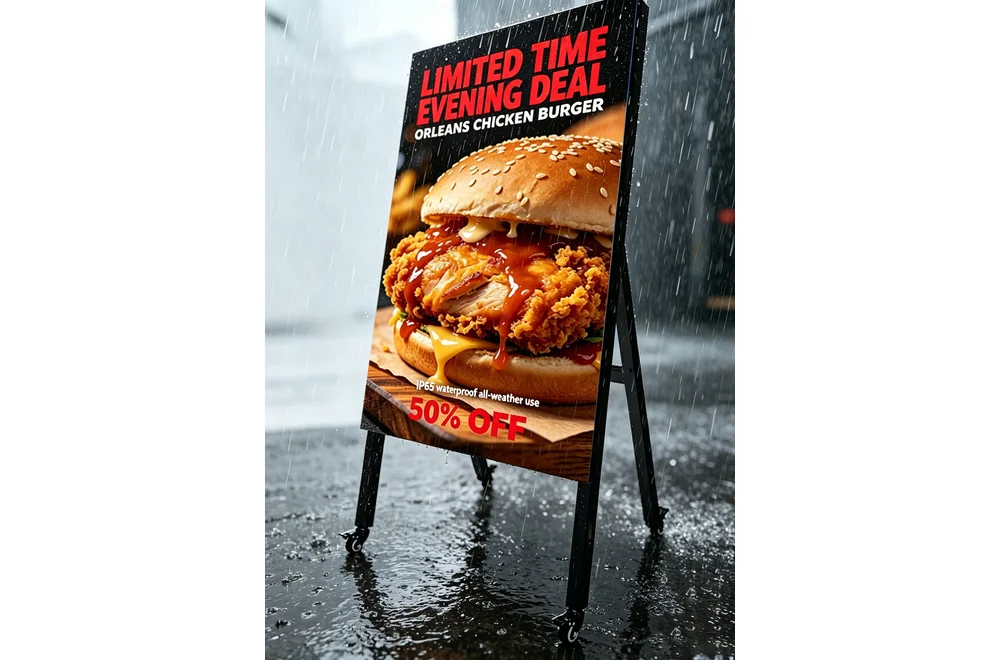

IP65 Protection for the Complete Unit
The complete A-frame is specified as IP65. Tell us where it will be used so we can check the placement and power connection for your project.
- Complete-unit IP65
- Rear maintenance

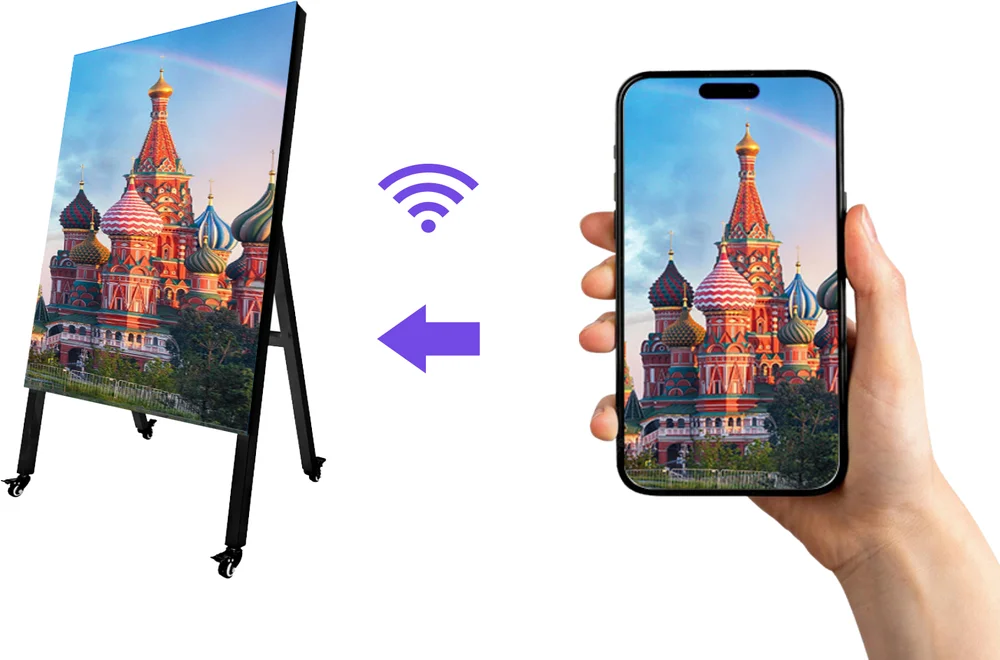

Update Content from Your Phone
Use the mobile app to change images and videos on the display. Ask us for a short demonstration of the setup and update process.

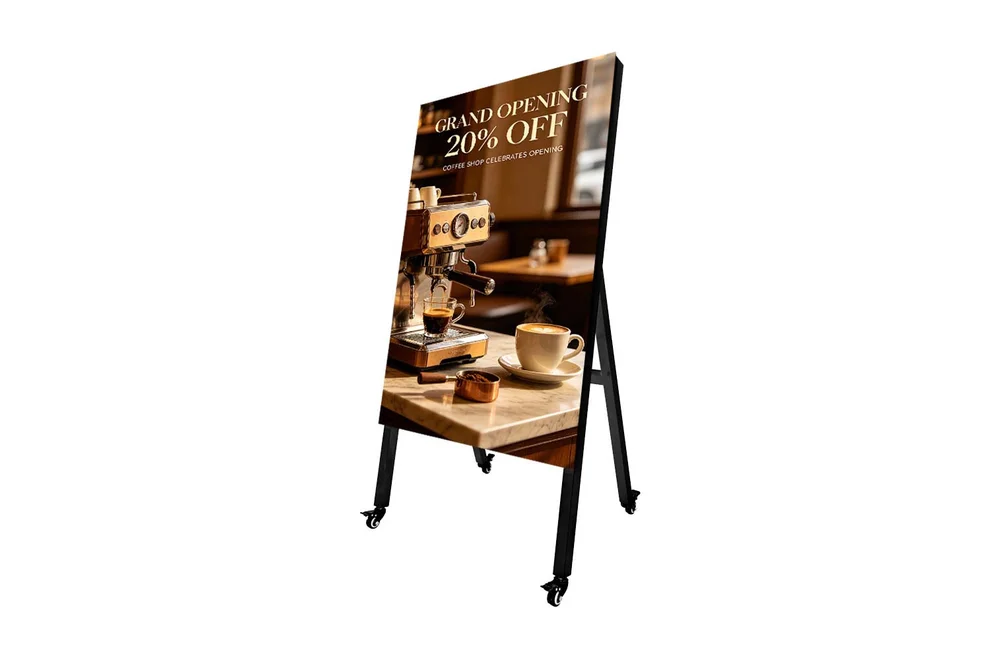

Move the Display Where It Is Needed
The 24 kg A-frame has caster wheels for moving it between suitable locations. A battery is available as an option; capacity and operating time depend on the configuration ordered.
- 24 kg
- Caster wheels
- Optional battery

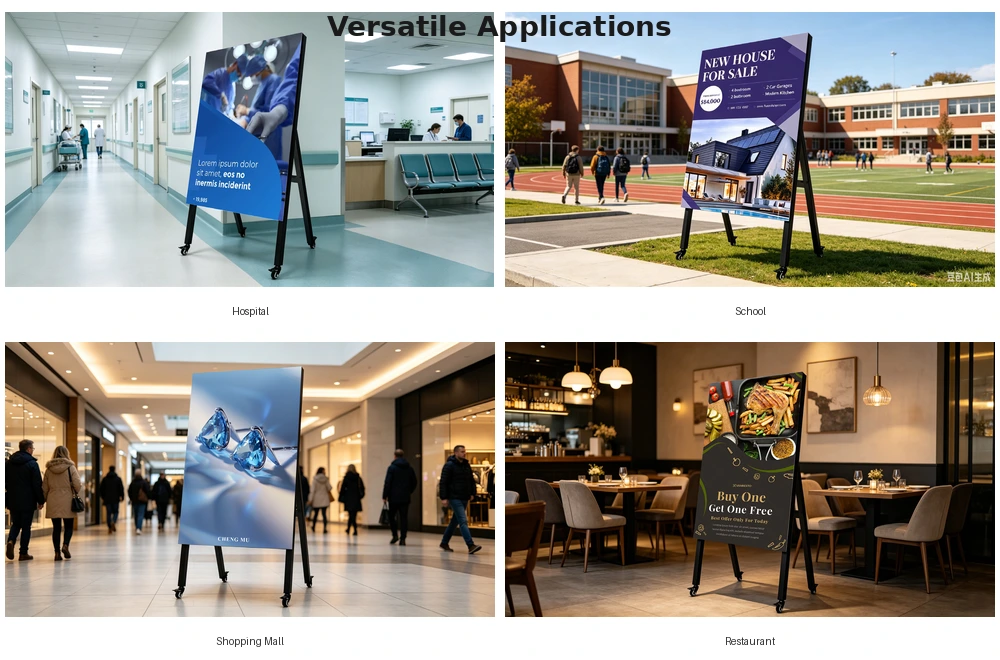

Versatile Digital Signage for Every Environment
From outdoor storefronts to indoor public spaces — one LED poster display, endless possibilities across 6+ industries worldwide.
➚
Retail Storefront
Show a current promotion near the entrance and change it when the campaign changes.
➚
Restaurant Menu Board
Show menu highlights, opening hours or daily offers near the entrance.
➚

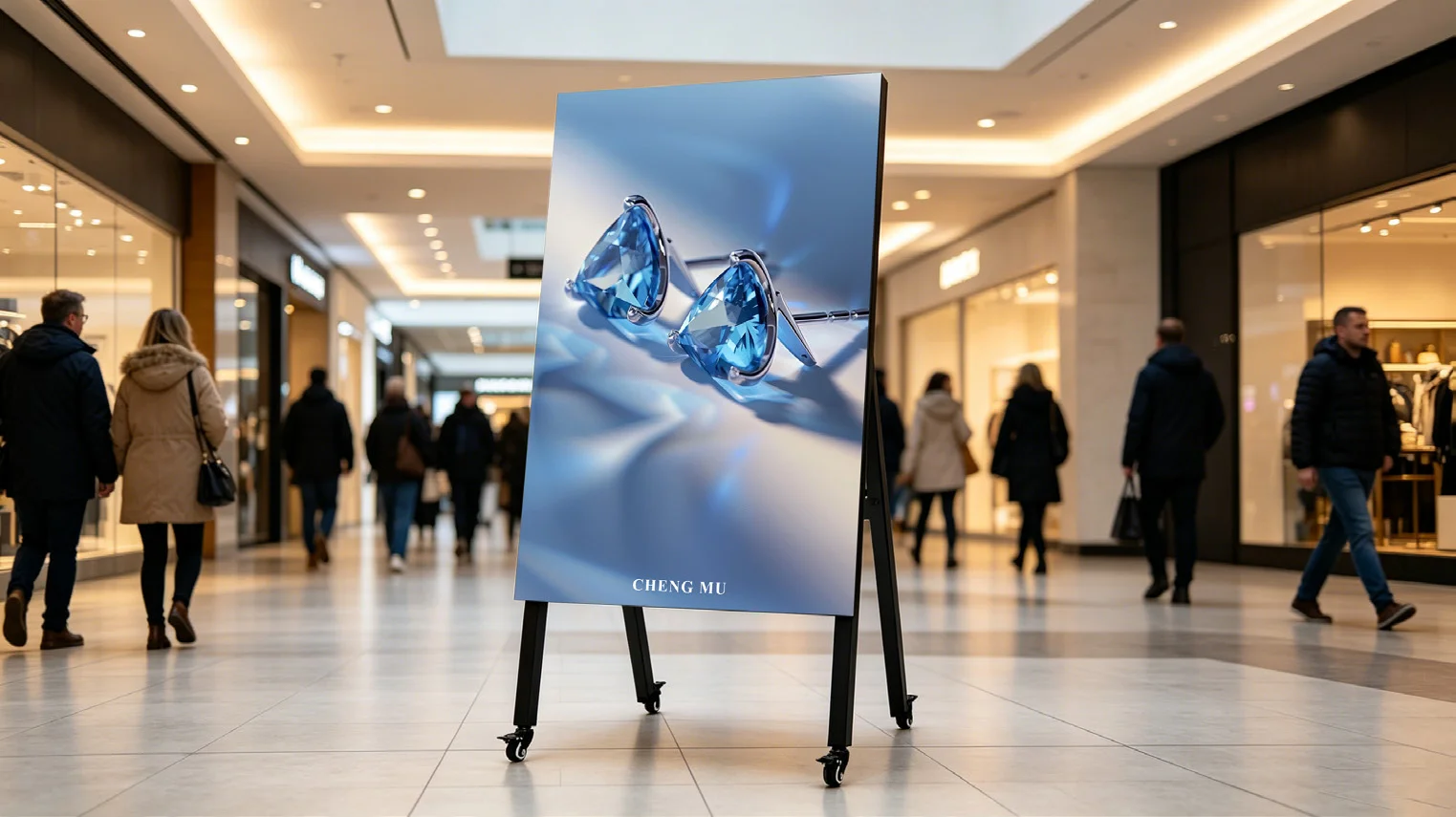

Shopping Mall
Place a campaign message along a suitable customer route.
➚
Hospital Lobby
Show visitor information or announcements in a suitable lobby area.
➚
School Campus
Share event information at a suitable entrance or common area.
➚
Exhibition & Trade Show
Use a movable display for booth messages and event schedules. Battery power is optional.
Compare Five Pixel Pitch Options
All five models share a 640 × 960 mm display area, an IP65 complete unit and a 24 kg frame. Resolution, brightness, LED packaging and power vary by pixel pitch.
| Specification | P1.538 | P1.86 ★ | P2 | P2.5 | P3.076 |
|---|---|---|---|---|---|
| Pixel Pitch | 1.538mm | 1.86mm | 2mm | 2.5mm | 3.076mm |
| Lamp Bead | 1010 + GOB | 1010 + GOB | 1010 + GOB | 1415 | 1415 |
| Module Resolution | 208×104 | 172×86 | 160×80 | 128×64 | 104×52 |
| Full Resolution | 416×624 | 344×516 | 320×480 | 256×384 | 208×312 |
| Scan Mode | 35S | 29S | 20S | 16S | 13S |
| Brightness | 4000 cd/m² | 4000 cd/m² | 4000 cd/m² | 4000 cd/m² | 5500 cd/m² |
| Refresh Rate | 3840/7680Hz | 3840/7680Hz | 3840/7680Hz | 3840/7680Hz | 3840/7680Hz |
| Gray Scale | 14-16 Bit | 14-16 Bit | 14-16 Bit | 14-16 Bit | 14-16 Bit |
| Avg / Max Power | 101W / 338W | 101W / 338W | 101W / 338W | 138W / 338W | 138W / 338W |
Tell us the viewing distance, content type and installation location, and we can help confirm a suitable configuration.
